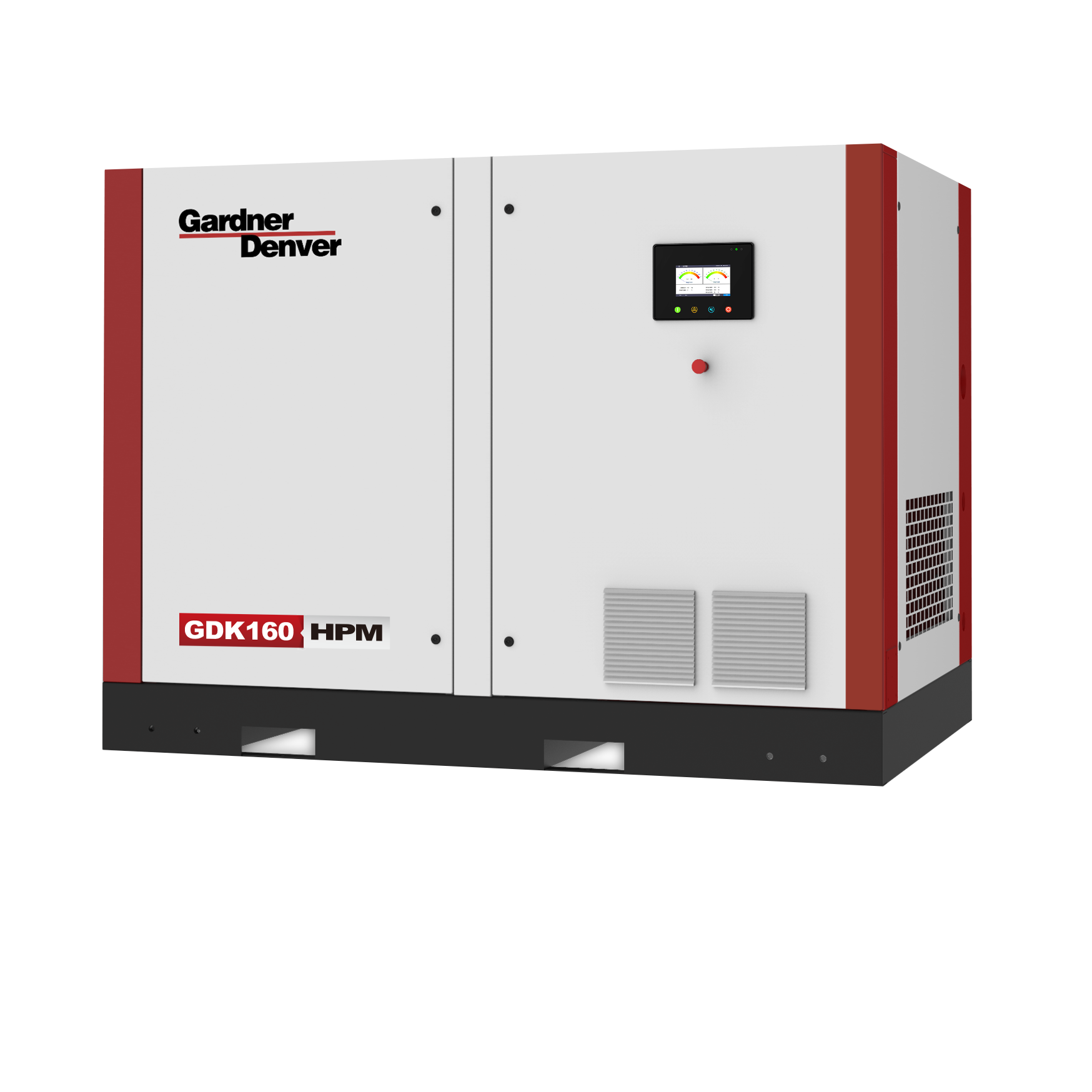

GDK90-160kW Oil-lubricated Compressor

The new Gardner Denver GDK series PM VSD screw air compressor design is time-tested and integrates multiple new technologies, such as high-efficiency cooling system and well-proven airend system, etc., which altogether ensure high reliability, efficiency and productivity for us. Our new high efficiency and energy saving products can fully meet customers’ needs for product performance and value.

Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

High Efficiency
  • Well-proven high-efficiency ARES series airend
  • High efficiency oil-cooled PM (VSD) motor
  •  Industry leading efficiency of the entire system



Reliability
  • Oil-cooled PM (VSD) motor with high protection grade
  • Premium Luminance controller
  • Independently mounted oil cooler & after-cooler (air-cooled)
  • Integrated stainless steel cooler (water-cooled)
  • 100% O-ring face seal
Innovative Design
  • Exquisite appearance design
  • High-efficiency cold air intake system
  • Independent cooler air duct
  • Innovative cooling fan
  • Integrated oil separation system
  • IP protection for wearables

Model Specifications



Model
Nominal Pressure
Rated Power
Nominal Capacity
Dimensions
Weight (air-cooled / water-cooled)
barg-50HZ
kW
m3/min
L x W x H (mm)
kg
Standard GDK Fixed Speed Unit
GDK90FS-7A/W
7
90
17.5
2300 x 1500x 1700
2220 / 2080
GDK90FS-8A/W
8
90
17
2300x 1500x 1700
2220 / 2080
GDK90FS-10A/W
10
90
15
2300 x 1500x 1700
2220 / 2080
GDK90FS-12.5A/W
12.5
90
13
2300 x 1500 x 1700
2220 / 2080
GDK110FS-7A/W
7
110
20.6
2300 x 1500 x 1700
2250 / 2110
GDK110FS-8A/W
8
110
20
2300 x 1500 x 1700
2250 / 2110
GDK110FS-10A/W
10
110
17.6
2300 x 1500x 1700
2250/2110
GDK110FS-12.5A/W
12.5
110
15
2300 x 1500 x 1700
2250/2110
GDK132FS-7A/W
7
132
25.5
2300 x 1500 x 1700
2880 / 2835
GDK132FS-8A/W
8
132
25
2300x 1500x 1700
2880 / 2835
GDK132FS-10A/W
10
132
22.5
2300 x 1500 x 1700
2880 / 2835
GDK132FS-12.5A/W
12.5
132
17.5
2300x 1500x 1700
2880 / 2835
GDK160FS-7A/W
7
160
30.6
2300 x 1500x 1700
2980 / 2935
GDK160FS-8A/W
8
160
30
2300 x 1500 x 1700
2980/2935
GDK160FS-10A/W
10
160
26.2
2300x1500x 1700
2980 / 2935
GDK160FS-12.5A/W
12.5
160
22
2300x1500x1700
2980 /2935
Standard GDK PM VSD Unit
GDK90HPM-A/W
7-10
90
6.1-18.3
2300x 1500x 1700
1720 / 1580
GDK110HPM-A/W
7-10
110
7.5-21.8
2300x1500x 1700
1730 / 1600
GDK132HPM-A/W
7-10
132
8.9-25.5
2300x1500x 1700
1850 / 1805
GDK160HPM-A/W
7-10
160
10.4-31.5
2450x 1500x 1700
2175 / 2058
