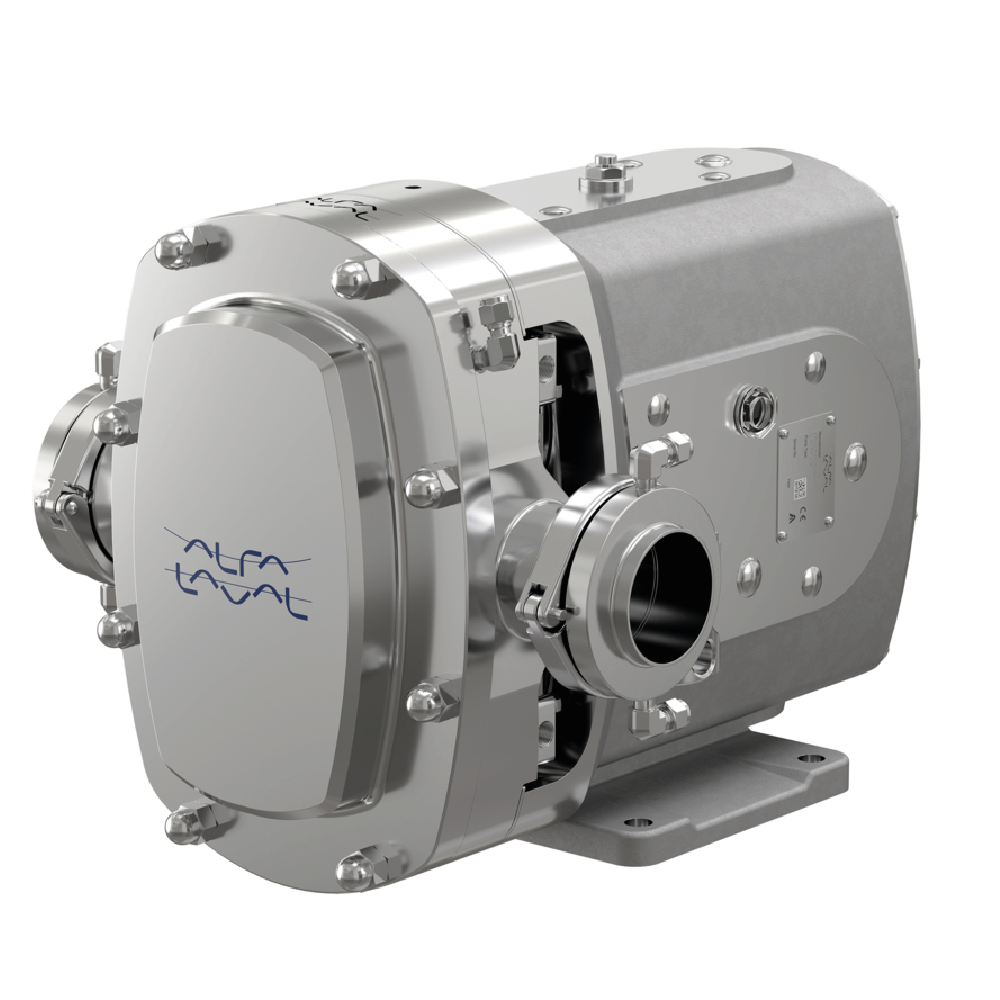

The hygienic pump that keeps your processes running. The Alfa Laval DuraCirc circumferential piston pump is the perfect choice for demanding hygienic applications. It is durable, reliable, efficient, and hygienic, with a wide range of flow and pressure capabilities. The DuraCirc is also easy to clean and maintain, thanks to its innovative design features.
Twin-wing piston rotors made of a special non-galling alloy are standard. All other steel components that come into contact with the media, such as the rotor case, front cover, and rotor nuts, are made of AISI 316L stainless steel. With its all-stainless steel exterior, including the gear case and feet, the DuraCirc pump has exceptional corrosion resistance.
Gearbox
The gearbox is standard designed with duplex shafts and a robust, long-life bearing arrangement. This provides a very rigid shaft assembly design, essential for the high volumetric efficiency achieved.
Seals & Elastomer
With profiled compression elastomers and an optimized shaft seal location, the DuraCirc is designed to meet the most stringent hygienic design standards and has verified and effective CIP cleanability. The pump features a front-loading single mechanical seal, which allows for quick and easy inspection or replacement without disassembling pipework. Single flushed and double mechanical shaft seals, as well as O-ring seals, are available as options.
Customer Benefits
Customer Benefits
High volumetric efficiency performance allows for optimized pump selection, reducing capital costs while improving process yield. Certified to both EHEDG and 3A, reducing process cross-contamination risk and CIP cycle time, maintaining process yield, and cutting cleaning costs. Truly front-loading single seal, full component interchangeability without complicated maintenance procedures, long-life bearing operation, and one single long-life lubricant make service faster and easier, increasing process uptime. Robust, durable design via a strong gearcase incorporating increased-diameter shafts and optimally positioned heavy-duty bearings minimizes the risk of pump head contact, reducing service requirements and maintaining process continuity. The DuraCirc Uni-Fit port option allows for easy direct replacement of both Alfa Laval SCPP range and other major brands into existing process systems without changing pipework.
Technical Information
Technical Information
The DuraCirc liquid transfer pump range has 13 pump head displacements ranging from 0.03 litres/rev to 4.14 litres/rev.
Maximum Flow Rate 149 m3/hr
Differential PressureUp to 40 bar g
Port Sizes40mm to 80mm
Applications
Application
Designed for Cleaning-in-Place (CIP), the Alfa Laval DuraCirc is ideal for hygienic applications within the dairy, food, beverage, home and personal care industries.
Service Capability
Service Capability
Gardner Denver Transport provide a complete aftermarket service offering including access to our extensive network of service centres and engineers for all of our fluid transfer pumps. “We keep you moving” is more than just a strap line, it’s our promise. If you break down, we’ll get you into one of our dedicated local service centres and back on the road as soon as possible. To find out more about Gardner Denver Transport’s aftermarket portfolio, including our service kits, recommended maintenance intervals and localised support network, view our aftermarket capabilities homepage.
