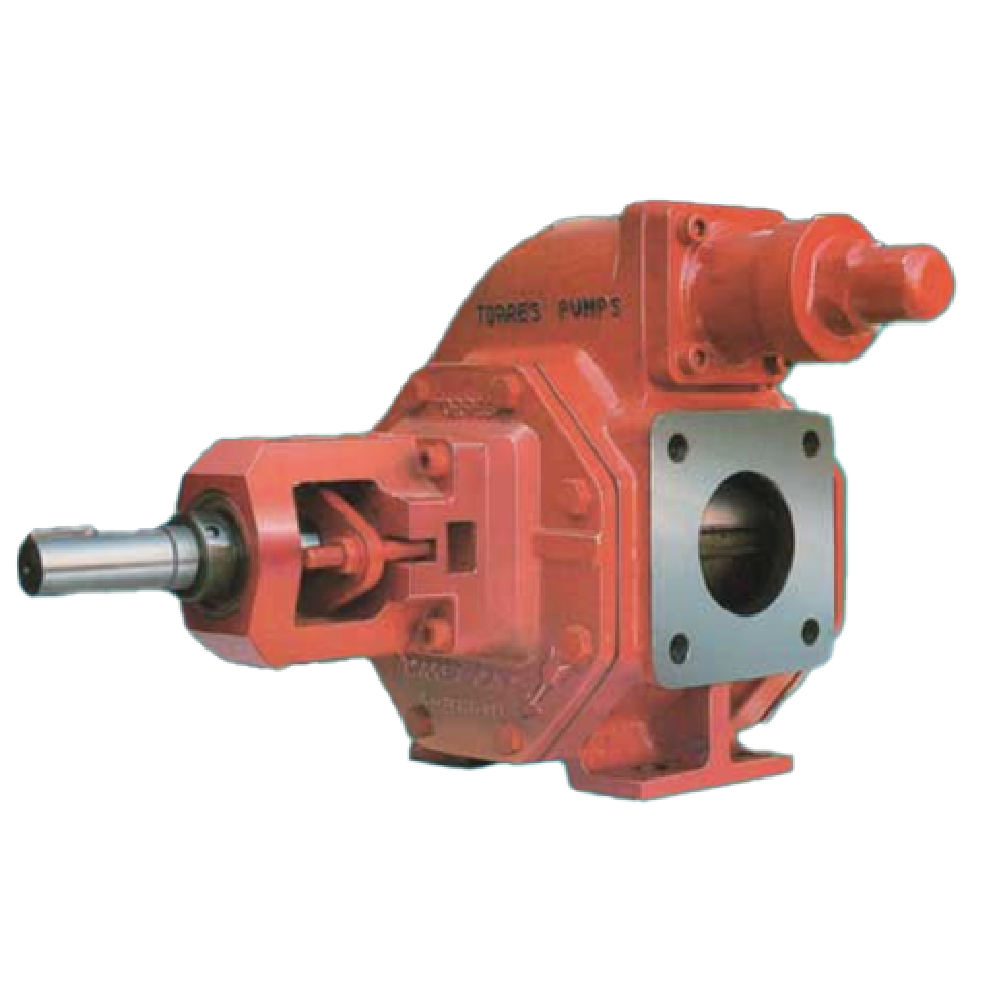

The versatile Mustang 75 or 100 pump efficiently pumps any liquid, regardless of viscosity. Chemical compatibility is hardly a concern, as the modular design offers lots possible pumping elements combination.
A Self-Priming, Positive Displacement Pump with High Efficiency and Volumetric Capacity. It is a self-priming, positive displacement pump with a rotary sliding vane design. Each revolution discharges a fixed volume of fluid, making it ideal for a variety of applications. As the rotor turns, the vanes slide within the rotor and move the fluid from the suction port to the discharge.
They are known for their high efficiency and volumetric capacity. The pump maintains high volumetric efficiency throughout service, even as the vanes wear. This is because the vanes simply move out to the slots, maintaining the same sine clearance against the body. As a result, suction capacity is unimpaired even after arduous service.
Technical Information
Technical Information
The Mustag pump range has a capacity from 1100 L/Min at 700 RPM , 400 L/Min at 250 RPM,
Operating Temperature: -30°C to 250°C
Medium viscosity: 1 Centipoise / Cp to 100000
Differential Pressure Up to 10 bar g
Service Capabilities
Service Capabilities
Gardner Denver Transport provide a complete aftermarket service offering including access to our extensive network of service centres and engineers for all of our fluid transfer pumps. “We keep you moving” is more than just a strap line, it’s our promise. If you break down, we’ll get you into one of our dedicated local service centres and back on the road as soon as possible. To find out more about Gardner Denver Transport’s aftermarket portfolio, including our service kits, recommended maintenance intervals and localised support network, view our aftermarket capabilities homepage.
