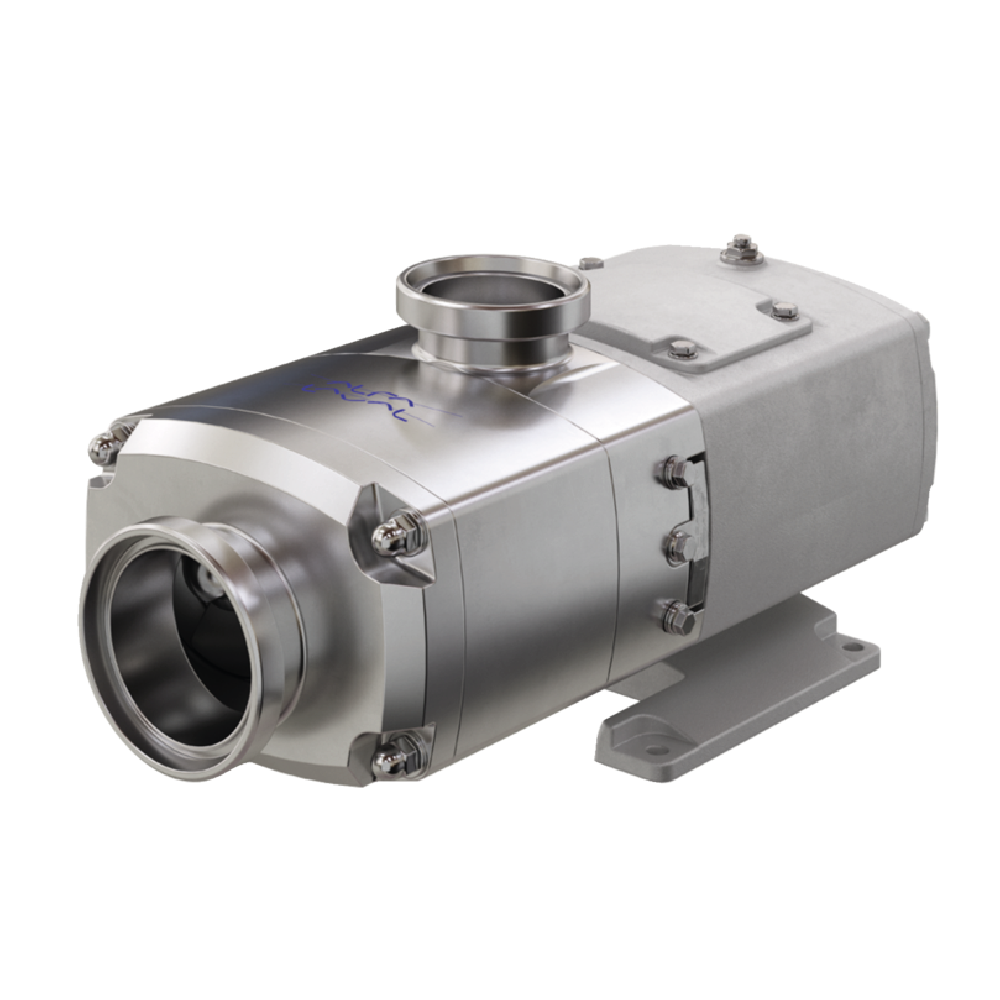

Hygienic Pumps for Liquid Transfer Twins Screw pump
Designed for process flexibility, the Twin Screw Pump is built on a robust, reliable platform that meets stringent hygienic standards. It is capable of handling both product transfer and Cleaning-in-Place (CIP). Its low pulsation characteristics and excellent solids handling capability reduce the risk of product damage, thereby improving product quality. Maintenance is simplified and process uptime increased.
Designed for handling sensitive, abrasive and high and low viscosity fluids, ideal for use in hygienic applications in the dairy, food, beverage and personal care industries. Its quiet, virtually pulse-free, smooth and gentle operation makes the pump an excellent choice for handling sensitive products.
Process and CIP all in 1
Two-in-one operation provides easy handling of process media of varying viscosities as well as CIP fluids. This simplifies piping and pump control, cutting costs and minimizing contamination risks.
Superior suction performance
with excellent lift capability and low NPSHr provides installation flexibility and increases product recovery.
Wide selection of models and options
The Twin Screw Pump is available in twelve models based on four frame sizes. Each frame size is available with three different screw profiles for varying pressure, flow and solids-handling capabilities.
Upgrade materials
All media contacting steel components, like pump casing, front cover and feed screws are in W. 1.4404 (AISI 316L). Furthermore, the pump casing is diffusion hardened. A stainless steel gearbox, end cover and foot ensure increased life and assist in washdown.
Sealing made easy
The front-loading, self-setting cartridge design makes it easy to replace the shaft seal while the pump is in place. Single, single flush and double mechanical cartridge seals are available. All options are fully front-loading and interchangeable.
Customer benefits
Customer benefits
Greater Flexibility
The Twinscrew feature a modular design giving a huge choice of 12 models, providing greater application flexibility for customers and a cost-effective solution for every industry.
Sanitary Operation
The Twinscrew fluid transfer pumps are extremely hygienic, earning a EHEDG accreditation and conforming to the USA 3A Sanitary Standard. They are also suitable for CIP and SIP.
CIP in place
Two-in-one operation provides easy handling of process media of varying viscosities as well as CIP fluids. This simplifies piping and pump control, cutting costs and minimizing contamination risks.
Multiple Seal Options
The optimum seal can be chosen to match your pumped media requirements and duty conditions. Single or double mechanical seals are available and include flushed or aseptic variants. For arduous conditions, hard faced seal materials can be used. Plus, packed glands offer a simple, low cost, and easy to maintain controlled leakage sealing arrangement.
