6x2 and 6x4 Chassis

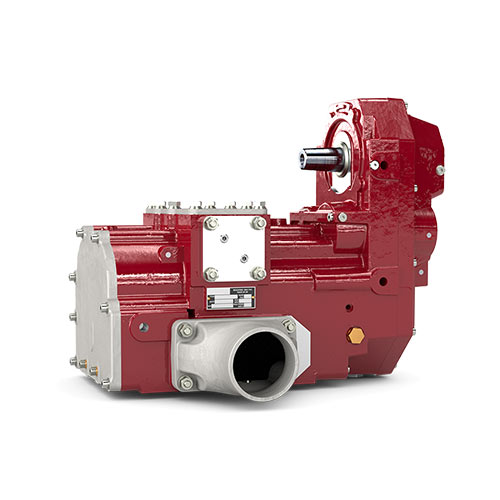

Oil-free Screw Compressor
TR20

The Gardner Denver TR20 screw compressor is the latest machine to be developed for efficient unloading of dry bulk products from road tankers. With the restrictions of space that legislation and other factors have imposed, installing a compressor of sufficient capacity for the discharge of a wide variety of products onto six wheel and short wheel base vehicles can be a challenge. The TR20 solves this.

Specifically developed for the dry bulk market, the TR20 is designed to discharge all products efficiently, reliably, and quietly.

Contact Us
Request a Quote Request Service, Parts or Support
Share


1060 m3/hr Flowrate


Quiet by
Design


Compact
Build


Lightweight



Click the button below to instantly download our product flyer. Discover features, benefits, and much more at your own pace. It's the perfect way to get to know our product better.



Get Your Copy Now!



Design Features

TR20 Design Features

When creating the TR20, Gardner Denver Transport utilised our vast expertise and knowledge of screw technology in order to deliver the best technical solutions for the Dry Bulk industry. The TR20 truck mounted compressor is designed in the following ways to provide you with complete piece of mind:





Drive Shaft

Elevated drive shaft position provides maximum flexibility for direct PTO propshaft positioning when on restricted chassis installations.



Rotors

Coated steel screw rotors allow for maximum strength, performance and corrosion resistance.



Torque Limiting Coupling

Unique Torque limiting coupling that fits directly onto the TR20 drive shaft is specially designed to protect the gearbox PTO from overloading and any potential damage.



Inlet Flange

A low profile inlet flange reduces the installation envelope.



Outlet Ports

Outlet flanges positioned on both sides of the compressor provide increased mounting flexibility.

Automobile Schüttgutkompressoren Schraubenmotoren

Customer Benefits

TR20 Benefits

Efficient, reliable, and compact, the TR20 supplies you with oil free, contactless and contaminant free air, with the following benefits:




Low Outlet Temperature

The TR20 has class leading low discharge outlet temperatures making it the perfect compressor for discharging products that are particularly sensitive to high temperatures.




Low Noise

Key developments in rotor design, frequency and synchronisation combined with optimised porting has resulted in the production of one of our quietest screw compressor to date.

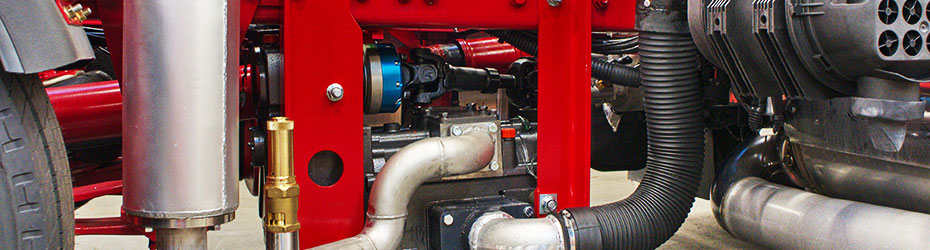

tr20 installed



Compact & Lightweight Design

Our designs allow for a simplified installation onto 6x2 and 6x4 tractor units or where space is limited for PTO direct drive and increased operational efficiency through weight saving (extra payload) and a simplified drive method.

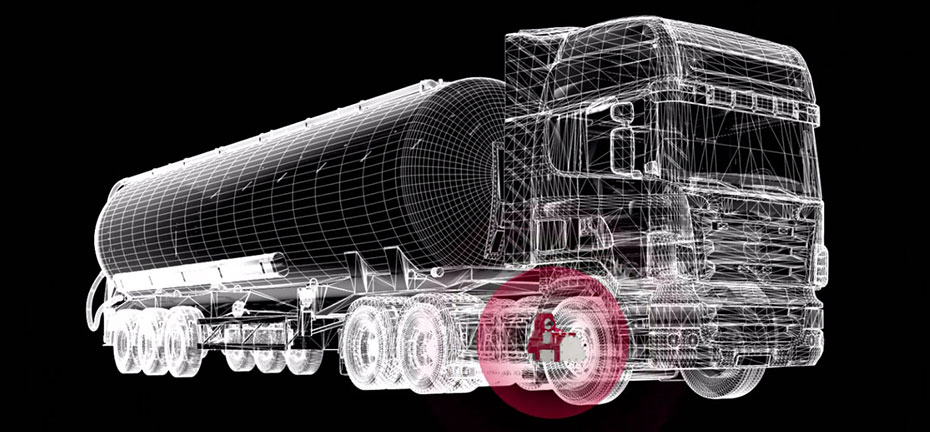

tr20 in 3d design truck

Technical Information

Versatile Performance Envelope

The TR20 screw compressor is available in two rotation directions to suit all PTO drive options and is ideal for installation on various 6x2 and 6x4 chassis truck configurations. The TR20 compressor produces a high air flow at pressures up to 2.2 bar (g), offering a versatile performance envelope covering multiple dry bulk applications.

TR20 Performance at 2.2 bar (g)
Maximum 1,060 m3/hr

Applications

TR20 Applications

Alongside other Gardner Denver products, the TR20 screw truck mounted compressor is specifically designed to be optimised for Dry Bulk applications. The TR20 combines the high capacity requirements of Dry Bulk compressors with low weight and compact dimensions that allow it to be installed inside the chassis of the latest generation of Euro 6 Tractor Units. With a displacement rate of up to 1,060 m3/hr, the TR20 is sized to discharge all products from cement to plastic pellets. This oil free screw compressor is ideally suited to the following applications:





Downloads

Download Our Case Studies!







Download Our Documentation

Visit our document library if you want to see more documents

tr20_gardner_denver_transport_brochure

TR20 Brochure - EN

tr20-iom2016

TR20 Installation Manual

GDT_Flyer_TR20_English

TR20 Flyer

Service Capability

Service Capabilities

Gardner Denver Transport provide a complete aftermarket service offering including access to our extensive network of service centres and engineers for all of our truck mounted compressors. “We keep you moving” is more than just a strap line, it’s our promise. If you break down, we’ll get you into one of our dedicated local service centres and back on the road as soon as possible. To find out more about Gardner Denver Transport’s aftermarket portfolio, including our service kits, recommended maintenance intervals and localised support network, view our aftermarket capabilities homepage.





The Complete Package

When you purchase a Gardner Denver product, you’re benefiting from a combined 200 years of industry experience and knowledge. We’ve built our reputation on providing high quality, reliable automotive compressors, pumps & blowers so you know, when you choose us, you’re getting guaranteed quality. Your TR20 would be installed at one of Gardner Denver’s leading workshops, ensuring that the high quality customer’s expect from our products is built in to your automotive compressor.
