XGME Series

Mist Eliminators

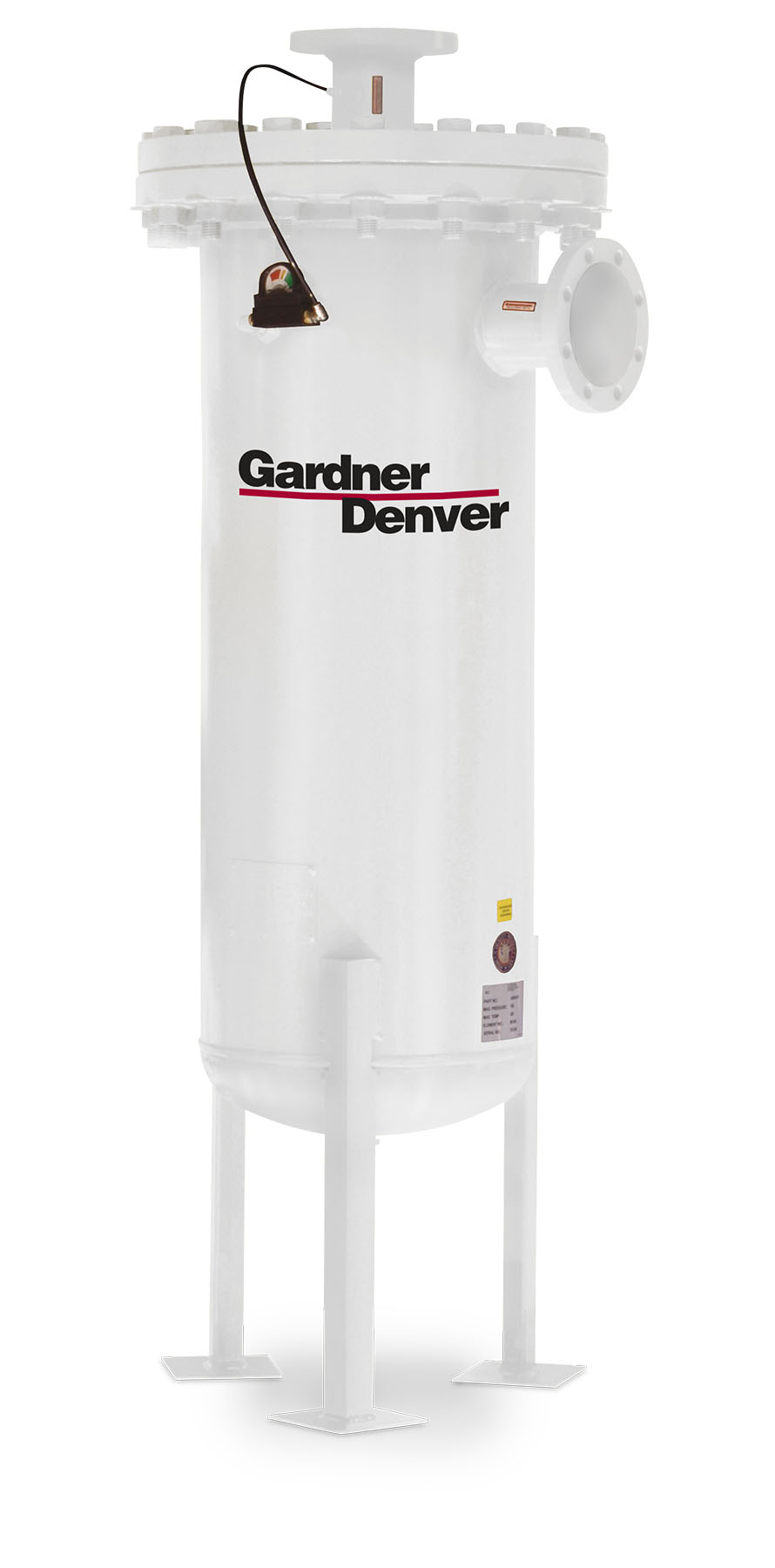

Gardner Denver XGME Series Mist Eliminators are used to reduce energy costs and remove oil and water aerosols from compressed air systems. They also protect products and processes from contamination, increase the life of pneumatic equipment, help eliminate paint appearance and adhesion problems, and keep pneumatic instruments operating. 

Contact Us
Request a Quote Request Service, Parts or Support
Share

Benefits & Features

Save money and operate responsibly

  • Auditor's choice to reduce energy costs
  • Protects products and processes from contamination
  • Captures and retains large slugs of oil and water, should drain trap fail
  • Protects downstream equipment from contamination should oil separator on rotary screw compressor fail
  • Heavy duty ASME stamped pressure vessel
  • Floor stand is standard
  • Optional differential pressure gauge with reed switch available

Save money and operate responsibly

  • 125 – 10,000 SCFM
  • Maximum Working Pressure: 150 PSIG
  • Maximum Operating Temperature: 150°F
  • Low pressure drop, saving energy
  • Long life mist eliminator element - Standard
  • Automatic Condensate Drain - Optional 

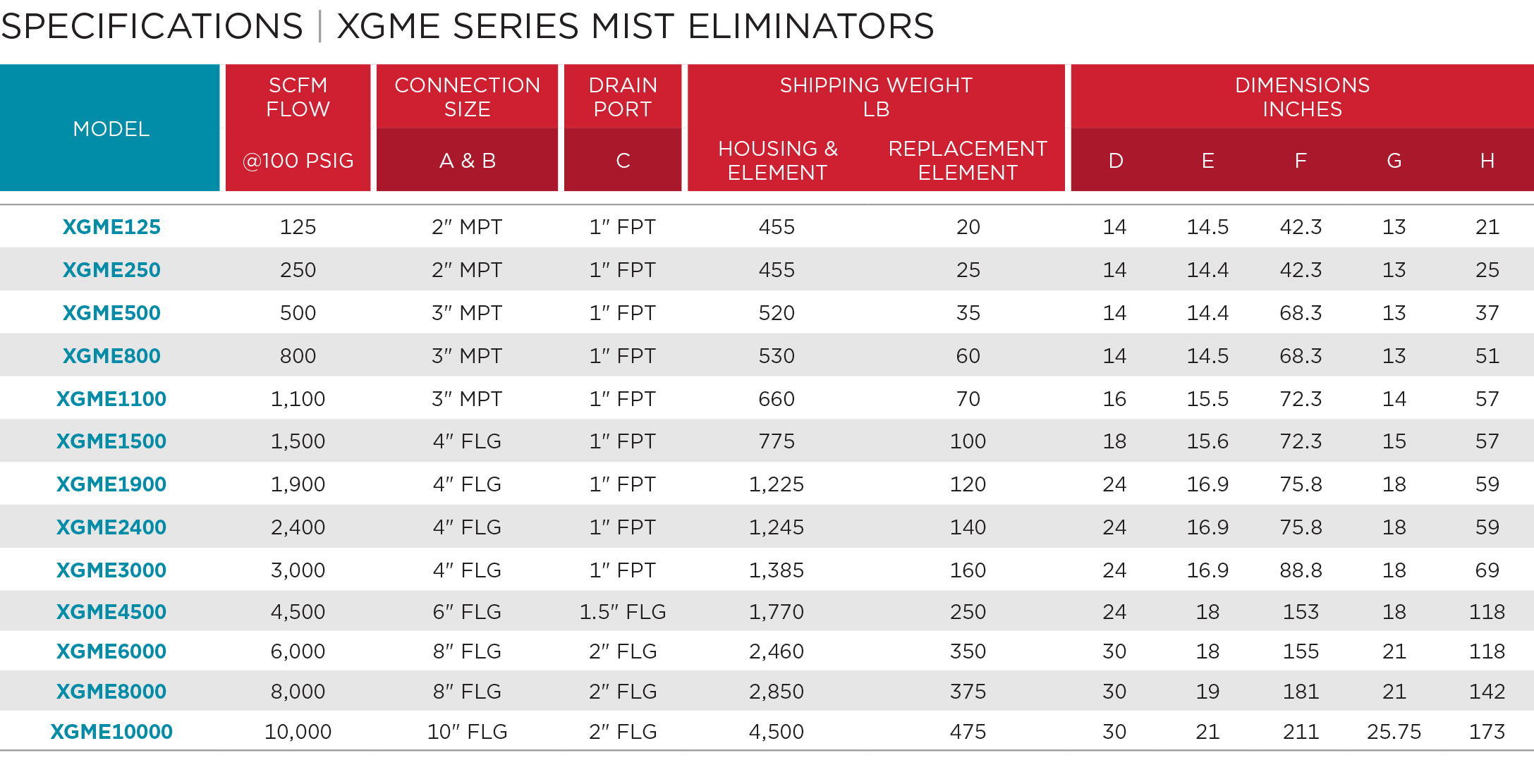

Performance
