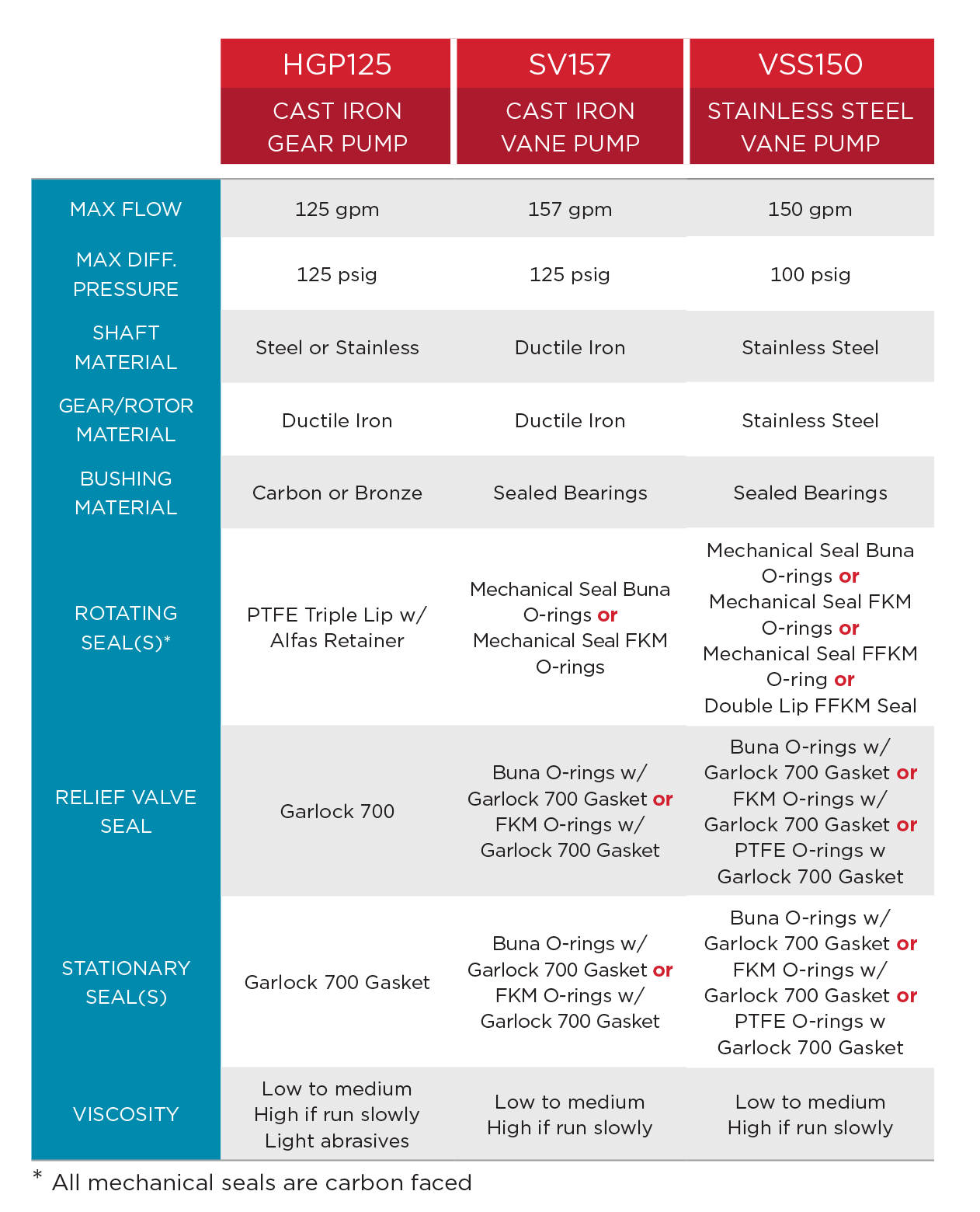

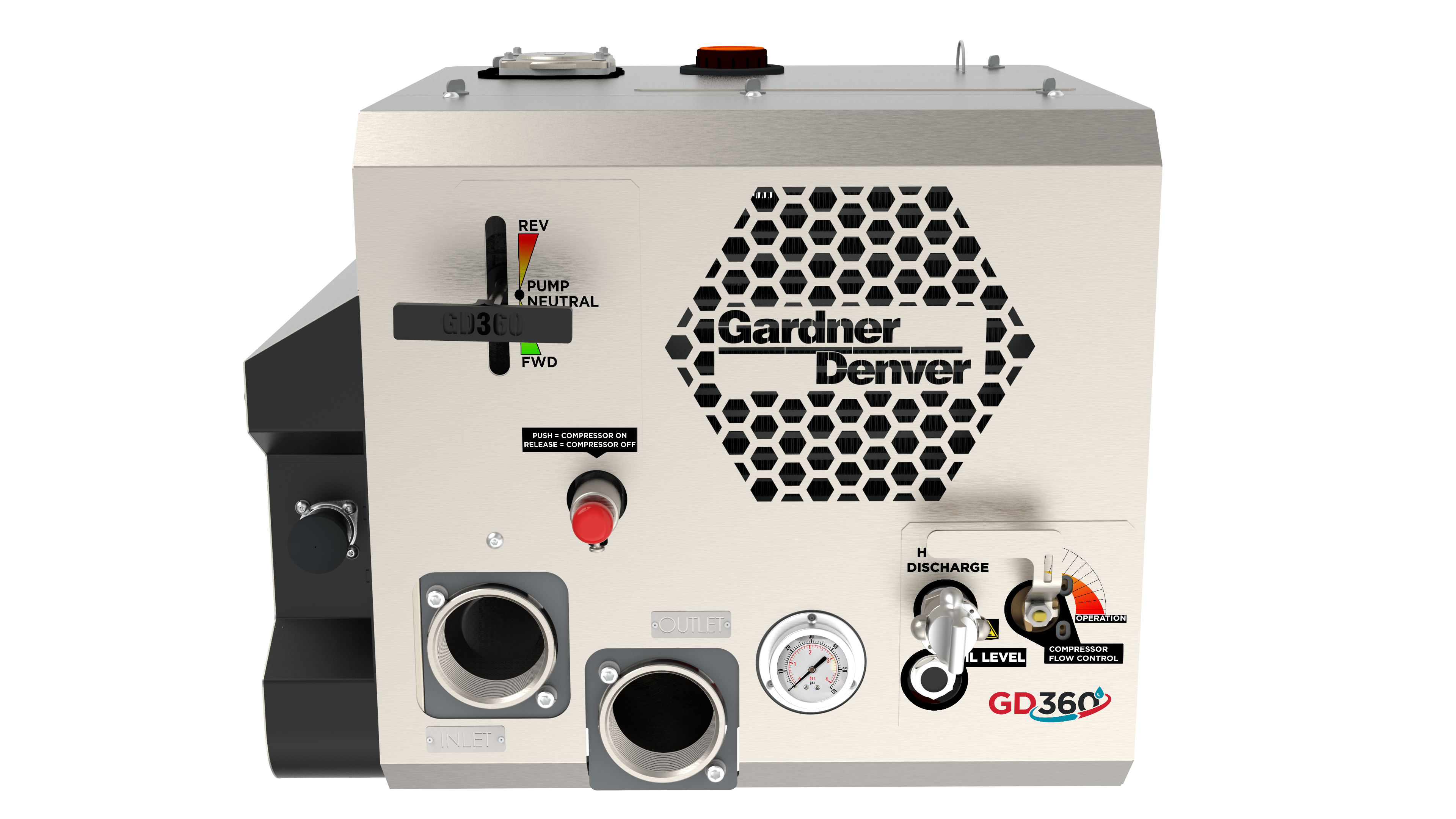

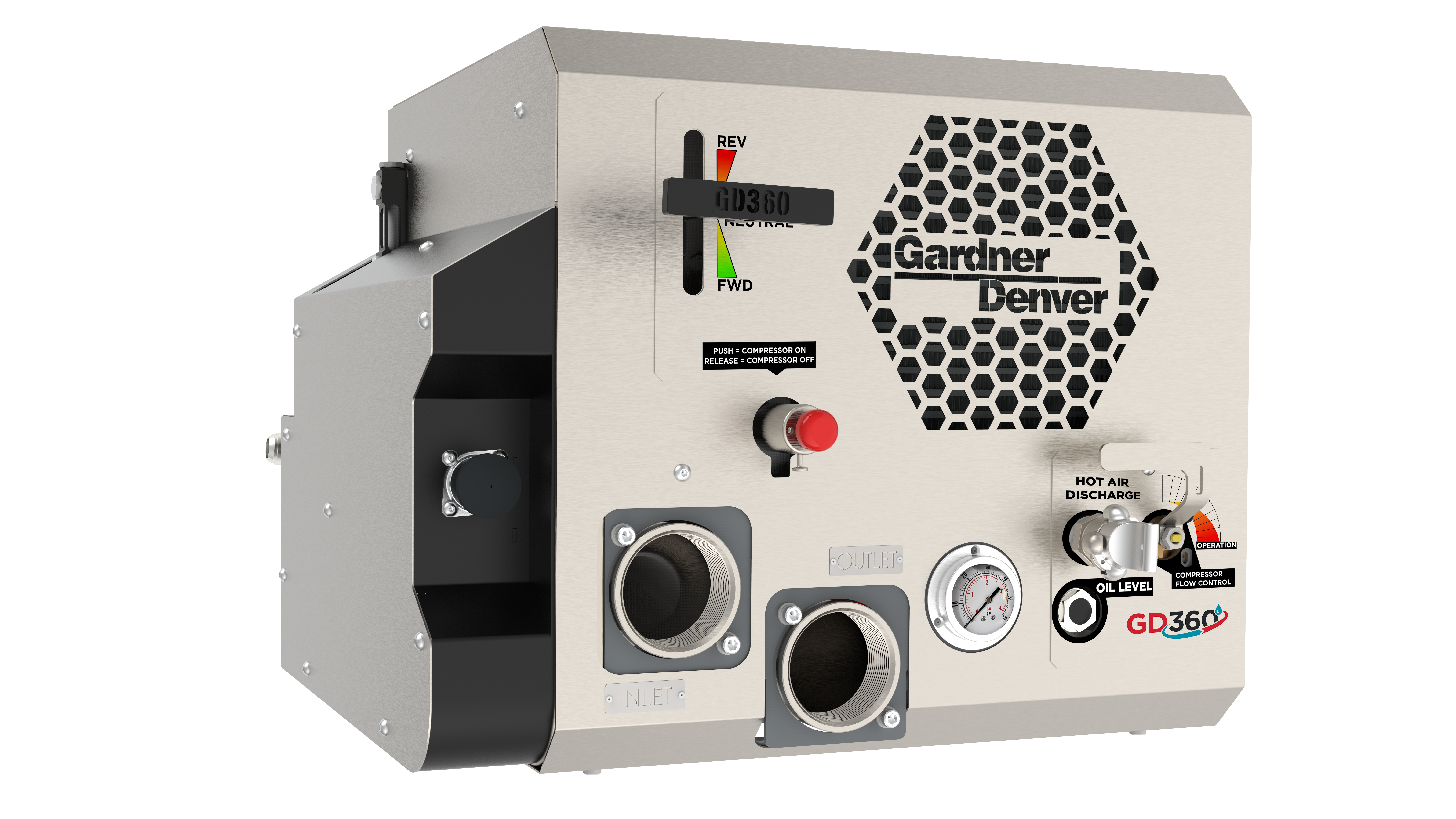

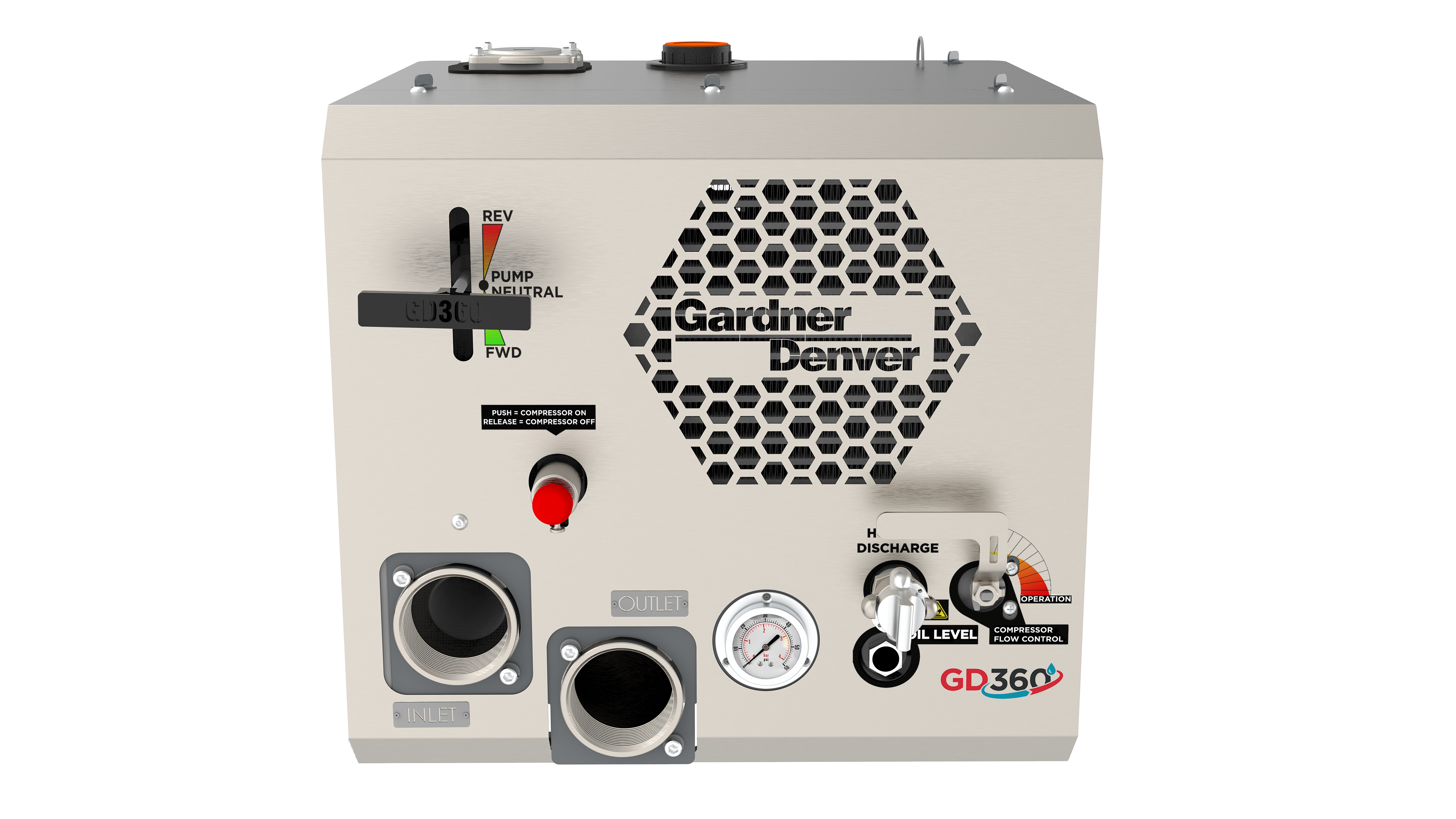

The GD360 liquid bulk package has it all and does it all when it comes to liquid and chemical bulk transfer. This robust package features the industry trusted GD70 compressor, your choice of gear or vane chemical pump and a hydraulic cooler all in one easy to install package. Features such as its noise-reducing all-stainless steel enclosure, forward and reverse variable speed pump control and simultaneous pump/compressor operation capability are perfect for virtually any application. It’s simple and safe operation, cost effective installation and hassle-free serviceability make the GD360 the industry’s premier bolt-&-go liquid/chemical transfer solution.
Quiet, All-Stainless Steel Enclosure for enhanced noise reduction and durability
Forward and Reverse Variable Speed Pump Control to allow precise control over the pump's direction and speed, enhancing versatility and efficiency in various applications.
Simple Push/Pull Compressor Activation Knob for a convenient activation mechanism to simplify operation, ensuring ease of use for operators.
Compressor Airflow Indicator allows operator to adjust airflow to known positions
Auxiliary Option capable of up to 30 gpm/3000psi for running additional hydraulically driven equipment
Staggered, Spacious Pump Connections for easy attachment/detachment
Large, Easy to Read Pressure Gauge to ensure clear and accurate pressure monitoring for efficient operation.
Compressor Sight Glass & Two Jaw, Twist-claw Hose Coupling to facilitate easy observation of compressor activity and seamless connection compatibility with standardized fittings.
Drill or No-Drill Frame Mounting Options to adapt to various mounting preferences and requirements.

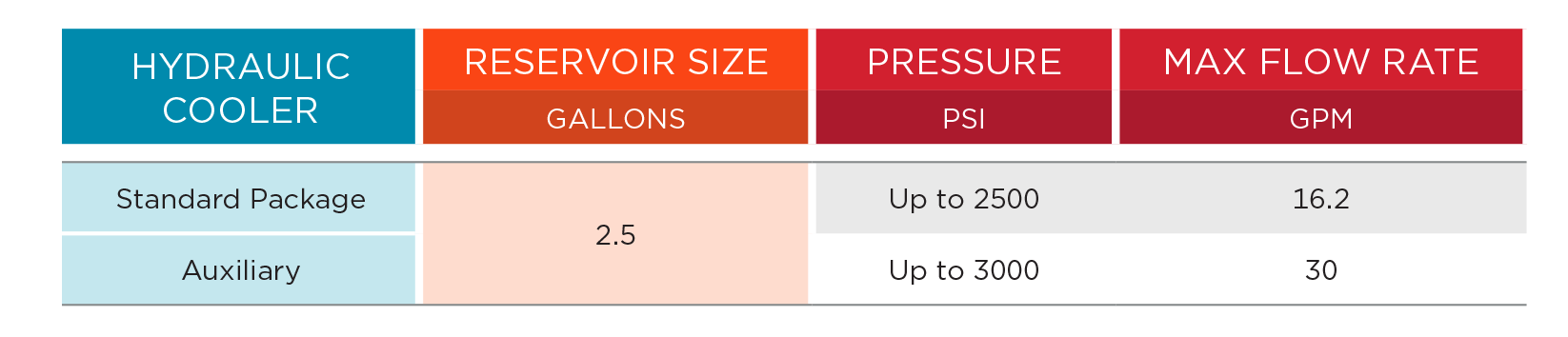

Hydraulic Cooler Filter can be changed without draining the hydraulic fluid, minimizing downtime and maintenance efforts.
Simple Hydraulic Fluid Fill Port for easy and straightforward access for filling hydraulic fluid, facilitating maintenance and operation.
Benefits
Benefits
Up to 5dBA noise reduction vs unenclosed packages
No air required for controls activation
Variable speed forward and reverse pump control
Staggered, spacious pump connections
Simultaneous compressor and pump operation
Enhanced operator safety
Typical install less than 4 hours, vs 36 hours for a tradition system = labor savings up to $3,840 at $120/hour
Standard accessories included with the GD360 ALL-IN-ONE Liquid Bulk Package are:
Air Filter
Compressor Oil
Hydraulic Oil Filter
Operating instruction/labels
1 ½” Code 61 standard suction connection
Optional accessories available for the GD360 ALL-IN-ONE Liquid Bulk Package are:
Auxiliary Circuit
Camlock Connections and Plugs/Caps
Suction Connection Elbow Options
No Drill Mount Kit
Spacer Brackets
Stand Off Z Brackets
Hydraulic Pump Options
Camlock Velcro straps
Suction/High Pressure Hoses
Additional Filters (Air, Oil, Hydraulic)
Parts
Parts
Gardner Denver has a range of parts and accessories to compliment the GD360. Accessories are available as discrete items or optional with new packages.
All genuine parts are factory engineered to the exact specifications of our machines, this means you get the maximum performance from products.
Service and Warranty
Service and Warranty
In the competitive market we work in, the cost to a business for a vehicle being off-the-road is high. Down time equals money lost. We understand this. That's why Gardner Denver's nationwide service network and highly skilled and certified technicians are available 24/7 to meet your repair needs. We offer support with extensive stocked spare parts to get you and your product back in operation as soon as possible.
What do we offer?
Globally stocked genuine spare parts
Service and maintenance kits
Competitive warranty
Detailed commissioning
Complete check and overhaul of your compressed air system
Reliable, professional maintenance and service contracts
