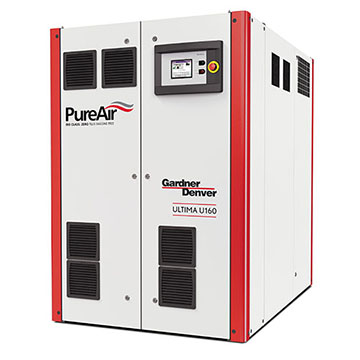

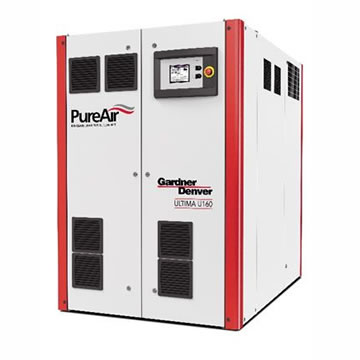

2 Stage Oil-Free Screw Air Compressor

• 100% Oil-Free
• 13% Higher Efficiency
• Lowest Unloaded Power
• >97% motor efficiency
• Up to 70% Turndown
• Ultra Quiet: 63 dBA
• 47% Smaller Footprint
• 98% Heat Recovery
• Easy Installation

Ultima™ – The real deal

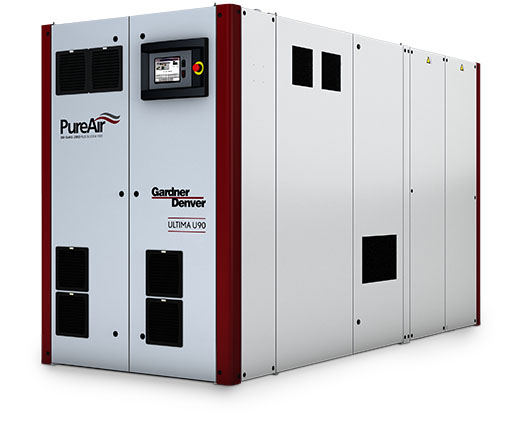

Ultima: A Revolution in Dry Screw Compressor Technology

What makes the Ultima so unique?

• Most efficient two-stage dry screw compressor on the market
• Uses independent low and high pressure dry screw airends
• Each airend is individually driven by a variable-speed, permanent-magnet, water-cooled motor
• Each motor operates at 97% efficiency (greater than IE4)
• Large turn down range up to 70%
• Lowest unloaded power consumption - only 8 kW
• Significantly smaller footprint while maintaining 63-70 dBA noise performance
• Water-cooled or air-cooled, both with heat recovery options

Superior Heat Recovery

• All the major components in the Ultima are water-cooled providing more efficient performance
• Approximately 94% of the energy used in a compressor is converted into heat. The closed loop cooling system in the Ultima cools all of the major components, removing heat from the motors, inverters and airends
• Ultima cooling philosophy maximizes energy recovery from the complete compressor package
• Ultima recovers 98% of the heated generated (approximately 12% more than standard), which can be used for other processes, reducing the building HVAC load
• Outlet water temperatures up to 90^oC
• Heat recovery connections are standard on water-cooled machines, optional on air-cooled machines

• 100% Oil-Free

Eliminates the risk of contamination

• 13% Higher Efficiency

The Digital Gearbox drives each airend individually, significantly improving performance over the complete turndown range

• Lowest Unloaded Power

Ultima uses only 8 kW when running unloaded as compared to >20 kW to conventional machines

• >97% motor efficiency

Permanent magnet synchronous motors provide >97% efficiency and compact size

• Up to 70% Turndown

Allows for a greater variation in demand without starting an additional compressor, saves energy

• Ultra Quiet: 63 dBA

Fully enclosed water-cooled package offers industry leading noise performance as low as 63 dBA

• 47% Smaller Footprint

Allows 3 machines to fit in the same space as 2 competitive machines

• 98% Heat Recovery

Excess heat is recovered for use in other plant processes

• Easy Installation

No ducting required

Optimum heat recovery ultimate cooling

Using a closed loop water cooling system to cool all major components, and with separate water cooling for the inter and after coolers, Ultima compressors offer the highest outputs for heat recovery - approximately 10% more than comparable compressors on the market. Ultima also offers the option of air-cooling.

Premium productivity

Where the majority of oil-free airends on the market quickly succumb to performance deterioration, Ultima utilises German engineered and manufactured airends incorporating a special coating to ensure life-long protection of the compressor and maximum efficiency.

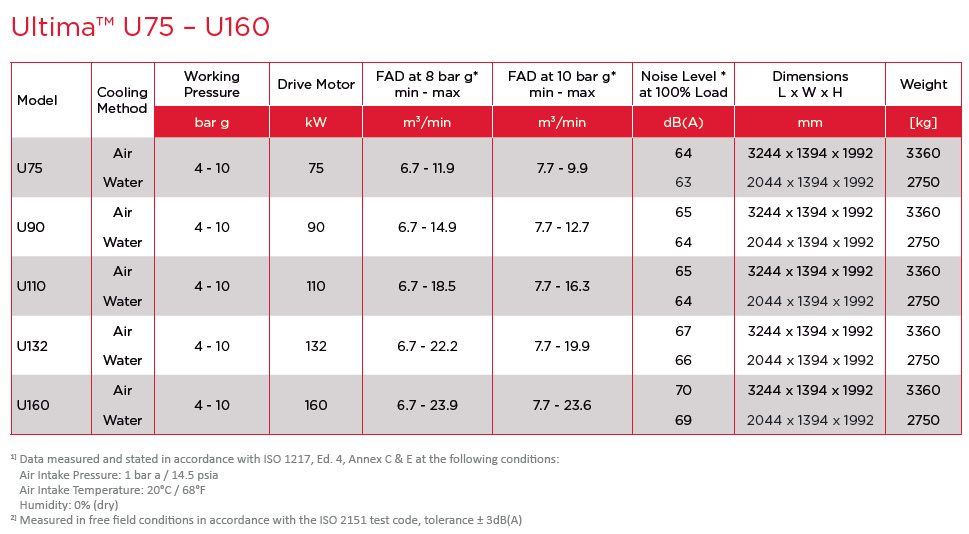

Technical Data

Experience Peace of Mind with our Warranty

The engineering philosophy of Gardner Denver ensures long-lasting, reliable equipment. Our simple, but bold warranty programs demonstrate our belief in the quality found in Gardner Denver compressors.

Our standard 1-year warranty ensures that you have peace of mind when it comes to your system's operation. Contact your local authorized Gardner Denver distributor for more details on the available warranty program.
