The Gardner Denver CycloBlower offers superior performance and dependability for dry bulk material handing. The exclusive smooth running helical screw rotor design provides cooler and more efficient compression for extended blower life. Load after load, year after year, the Gardner Denver CycloBlower is the leader in dry bulk loading and offloading.
The Gardner Denver CycloBlower offers superior performance and dependability for dry bulk material handling. The exclusive smooth running helical screw rotor design provides cooler and more efficient compression for extended blower life. Load after load, year after year, the Gardner Denver CycloBlower is the leader in dry bulk loading and offloading.
Features
#1 Industry choice for over 50 years
Double end driveshafts
Allows for either clockwise or counterclockwise rotation
Bearings
Discharge end angular contact bearings provide axial and radial rotor positioning
Air Shaft Seals
Labyrinth design with corrguard shaft seals ensures controlled minimal leakage of air
Cylinder
The Cylinder is constructed from a one piece high strength cast iron casting

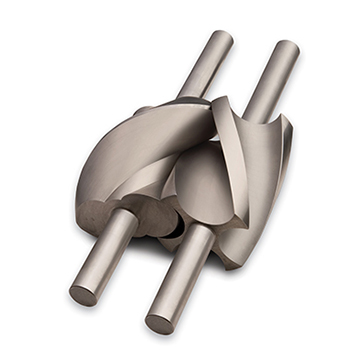

Rotors
One piece ductile iron rotors are dynamically balanced to assure smooth operation. The main rotor is a helical two lobe design while the gate rotor is a four flute design
Lubrication
Proven results with grease lubricated inlet end bearings. The discharge end bearings and gears are lubricated by a self contained oil splash system
Application
Capable of handling pressure off-loading and vacuum on-loading applications.
Benefits
Every Driver Loves a CycloBlower!
The Gardner Denver CycloBlower Truck Series is ideal for all dry bulk product types including frac sand, barite clay, cement, pulverants and powders, granules, pebble and feeds.
It's Lightweight
On average, the CycloBlower Truck (with mounting kit) is 120 lbs lighter than a straight lobe blower, meaning more product can be delivered daily.
It's Efficient
The CycloBlower Truck uses lower HP and engine speeds compared to other straight lobe blowers meaning you use less fuel every single time you use the blower.
It's Quiet
On average, the CycloBlower Truck is 3-4 dBA quieter than other straight lobe models.
It's Maintenance Friendly
No contacting parts to wear out for low maintenance costs.
Gardner Denver has a range of accessories to compliment the CycloBlower Truck Series. Accessories are available as discrete items or packaged together with new blowers. All genuine parts are factory engineered to the exact specifications of our machines, this means you get maximum performance from our blowers and compressors.
Stainless Steel Inlet Filter
Truck Blower Overhaul Kits
Relief Valves
Genuine Gardner Denver Lubricants
Complete installation kits including mounting brackets, silencer kits, and filter kits
Silencers - stainless steel or carbon steel available
Service and Warranty
In the competitive market we work in, the cost to a business for a vehicle being off-the-road is high. Down time equals money lost. We understand this. That's why Gardner Denver's nationwide service network of highly skilled and certified technicians are available 24/7 to meet your repair needs. We offer support with extensive stocked spare parts to get you and your product back in operation as soon as possible.
What do we offer?
Globally stocked genuine spare parts
Service and maintenance kits
Detailed commissioning
Complete check and overhaul of your compressed air system
Reliable, professional and personalized maintenance and service contracts.
