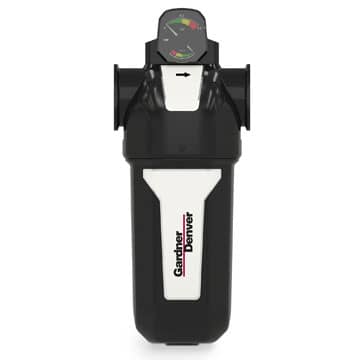

Air Compressor Filter

XG Series Filters

Advanced XG Series compressed air filters by Gardner Denver reduce contamination in your air stream to help protect your critical processes and valuable equipment. Our filters are rigorously tested and engineered with superior components to provide years of reliable performance and consistently high-quality air.
Contact Us
Request a Quote Request Service, Parts or Support
Share

Benefits

XG Series filters provide clean, high-quality air as defined by ISO 8573-1:2010. With multiple filter element grades available, there is a filtration solution that will meet your unique requirements.

Pressure drop accounts for over three-quarters of the ownership cost of a compressed air filter. Even when a filter element is clean and dry, it can rob a compressed air system of pressure, causing the air compressor to work harder and increase energy costs. The flow path through the XG Series filter housing reduces turbulence and enhances efficiency, while the deep-pleated element design further minimizes pressure drop.

Features

  • Filtration from 18-13,200 cfm
  • Mist Eliminators from 125-10,000 cfm
  • All-Aluminum Cast Body
  • Proprietary Corrosion Coating applied on inside and outside of housing
  • Industrial Grade Brass Float Drain
  • Deep-Pleated Filter Media



Performance

  • Grade AC | Activated Carbon Filtration
    • Oil vapor and hydrocarbon odor removal, providing a maximum remaining oil content of <0.003 ppm (<0.003 mg/m³) @ 69°F (21°C).
  • Grade GP | General Purpose Protection
    • Particle removal down to 1 micron including coalesced liquid, water and oil, providing a maximum remaining oil aerosol content of 0.1 ppm (0.1 mg/m³) @ 69°F (21°C).
  • Grade HE | High Efficiency Oil Removal Filtration
    • Particle removal down to 0.01 micron including water and oil aerosols, providing a maximum remaining oil aerosol content of 0.01 ppm (0.01 mg/m³) @ 69°F 21°C).
  • Grade DP | General Purpose Dust Filtration
    • Dust particle removal down to 1 micron.
