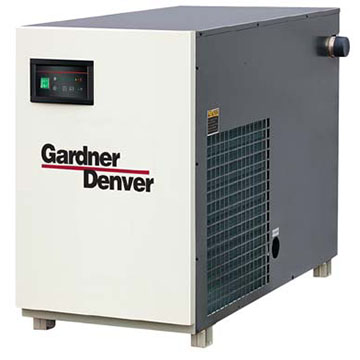

RGD Series Refrigerated Air Dryer for Air Compressors
RGD Series Refrigerated Air Dryer for Air Compressors
Back to the product list

Innovative Non-Cycling Refrigerated Air Dryer

RGD Series Air Dryers 10-1200 SCFM

The RGD Series refrigerated air dryers offer the perfect balance between technology and simplicity to dry compressed air systems to a stable SO 8573-1 Air Quality, Class 4 to 5 pressure dew point. The smooth bore, copper tube-on-tube heat exchangers make for an innovative, efficient system.

Contact Us
Request a Quote Request Service, Parts or Support
Share

RGD Series

Non-Cycling Refrigerated Dryer

The RGD series refrigerated air dryers offer the perfect balance between technology and simplicity to dry compressed air systems to a stable SO 8573-1 Air Quality, Class 4 to 5 pressure dew point.

Features

Design Features

RGD 15-50 SCFM

  • Smooth bore, copper tube-on-tube heat exchangers
  • Centrifugal separator efficiently captures condensate
  • Static condenser design provides trouble free, quiet operation
  • Electronic drain valve

RGD 75-1200 SCFM

  • Stainless steel, cross flow heat exchangers optimize heat transfer and service life
  • Compact design saves floor space
  • Stainless steel inlet/outlet connections to prevent corrosion
  • Timed electric condensate drain
  • Integral demister/separator

Benefits

Value at its best

Efficient Condensate Management

Increased calming zone and integral demister/separator captures liquid condensate and solid particles

  • Effectively removes condensate from 0-100% flow conditions without moisture carry-over

Furnished with condensate drain

  • Electronic or timed electric (dependent on scfm range)

Performance

rgd-series-ps

Performance

Downloads

ga-rgd_1st-_1-16

RGD Series 10-1200 SCFM Non-Cycling Dryer Brochure
