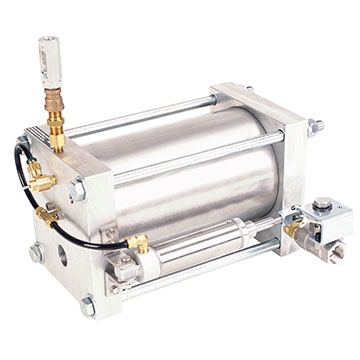

The NA750 is the ultimate high pressure demand operated drain.The unit is fully automatic -no electricity is required. Its low profile gives you the advantages of installing it in areas where the vessel to be drained is only a few inches from the ground. A unique air valve design uses a magnetic force to ensure both a positive opening and closing that will prevent air loss.The magnetic force is positioned away from the condensation level to prevent any attraction of metal particulate. An innovative ball valve support and positioning system prevents the side loading problem which otherwise would cause premature sealing failure around the valve stem. The ½” ball valve ensures that scale and rust will exit the vessel. The NA750 will not clog which eliminates the need for a strainer.
The NA750 is the ultimate high pressure demand operated drain. The unit is fully automatic — no electricity is required. Its low profile gives you the advantages of installing it in areas where the vessel to be drained is only a few inches from the ground. A unique air valve design uses a magnetic force to ensure both a positive opening and closing that will prevent air loss. The magnetic force is positioned away from the condensation level to prevent any attraction of metal particulate. An innovative ball valve support and positioning system prevents the side loading problem which otherwise would cause premature sealing failure around the valve stem. The 1/2" ball valve ensures that scale and rust will exit the vessel. The NA750 will not clog which eliminates the need for a strainer.
Features
Operating Temperature: 32-180°F
Housing Pressure: 0-750 PSI
24 ounce per cycle discharge
Stainless steel vessel
Rugged design for tough applications
Fully pneumatic
Operates on demand
Benefits
Fully pneumatic
Stainless Steel vessel
Ball valve passes rust and scale
Ball valve stem support system
Low profile simplifies installation on base mounted compressors and dryers
