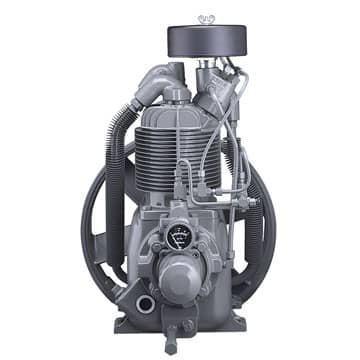

The PL-Series reciprocating compressor has been designed to operate in extreme duty applications. This pressure-lubricated industrial air compressor can operate up to 250 psig in remote locations, making it perfect for a variety of applications. This product features domed pistons, integral cylinder head, disc valves, and oil pump. The reciprocating compressor comes equip with a load-less auto stop/start feature, and can be tank or base mounted. All models are lubricated with AEON compressor oil.
The PL-Series compressor has been designed to operate in extreme duty applications and is a pressure-lubricated alternative to the R-Series unit. Because the PL-Series can operate up to 250 psig in remote locations or in off-level operations, it is a true industrial use compressor. The PL-Series features domed pistons, integral cylinder head, disc valves and an oil pump that provides lubricant to all crucial parts of the compressor.
Specifications and Features
3 - 30 hp
Up to 250 psig
9.7 - 202 acfm at 175 psig on Electric Driven units
Tank or Base Mounted, Simplex, Duplex and Engine Driven Models
Two-Stage pressure lubricated pumps
Loadless auto stop/start
Pro-rated 5-year pump warranty and 1-year package warranty
Factory filled with AEON lubricant
Features
Key Features
Oil Pressure Gauge mounted on the front of the compressor for an excellent view and easy pressure monitoring
Tapered Roller Bearings insure long operating life of the crankshaft
Positive Displacement Oil Pump provides lubricant to all critical areas of the compressor pump that require lubrication
Crankshaft and connecting rod bearings are pressure lubricated for extended life
An external spin on oil filter and an internal oil inlet screen protect internal components from damaging debris
Hydraulic unloader with factory-set pilot valve provides easy, loadless start and low pressure protection for unattended operation
Industrial class bearings
Optional Equipment: Magnetic Starter, Air-Cooled or Water-Cooled Aftercooler, Automatic Tank Drain (Pneumatic), Vibration Isolators, Low
Oil Level Monitor, Refrigerated Dryer, DPR (Microprocessed Duplex Programmable Relay) Control Panel, AEON™ Lubricant, Power
Monitor, Constant Speed Control, Dual Control to run either in start/stop or constant speed mode, NEMA 4 rated parts, Alternate Voltages and TEFC, ODPHE, TEFCHE Electric Motors
The standard warranty covers parts and labor on the package components for one year and three years on the compressor pump.
The Gardner Denver philosophy ensures long-lasting, reliable equipment. Our warranty program demonstrates our confidence in our products. Each new Gardner Denver assembled unit has a 3 year warranty on the compressor pump against defects in materials of workmanship under normal use and service.
*See standard warranty form BU-50 & BU-51 for complete standard warranty details.
Premium Extended Warranty
Purchase a Premium Warranty Kit at the same time as your new Gardner Denver compressor package to receive extended warranty protection. This offer will double the coverage with an additional 3 years of warranty on the compressor pump (parts & labor) providing 6 YEARS of worry free coverage. The Premium Extended Warranty also provides an extra 12 months coverage on the package for a total of 24 months. See Premium Warranty form BU-60 for complete extended warranty details.
• Premium Warranty kit has all necessary service items (oil & filters) for 6 years of annual maintenance. • The use of approved Gardner Denver lubricants are required to maintain the extended warranty period.
